Features

• Everything you need out-of-the-box
• Quantum Trigger included in the kit
• No need to use USB-Link for installation and configuration
• New noise-resistant trigger detection algorithm
• Hair-trigger out-of-the box. Even 60 trigger sensitivities for the 1st mm (0.04 in) of movement
• Additional protection against interferences thanks to multi-layer PCB with EMC shield
• Automatic Pre-Cocking: LOW / MID / HIGH
• Trigger sensitivity adjustment without any limitation, Improved cycle detection
• Active brake adjustment: Adaptive / 100% / 60% / Brushless motor / OFF
• New selector mode: SAFE - SEMI - BINARY instead of SAFE - BINARY - AUTO
• GCS App allows for making firmware updates via the internet, which enables quick applying of improvements

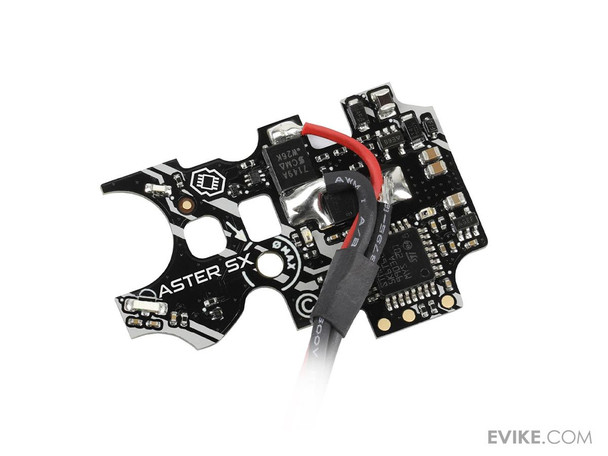

ASTER SX for V2 gearboxes the natural successor of ASTER SE merges years of experience with cutting edge tech. ASTER SX is fully compatible with popular brushless motors even with batteries up to 11.1 V. The unit heats up less even while accommodating higher loads. ASTER can operate with stronger springs and more demanding configurations. ASTER SX comes with a free Quantum Trigger, so you can easily set sensitivity from ludicrous touch through hair to full movement. Improved programming via trigger gives you settings such as automatic Pre-Cocking, trigger sensitivity adjustment, Active Brake settings with top-class adaptive mode. Calibration available just via trigger and selector movement. ASTER V2 SX turns your AEG into future-proof advanced training equipment. All this, along with a thicker and sturdier PCB 1 mm in thickness makes ASTER V2 SX one of the most durable ETUs on the market.

What distinguishes ASTER V2 SX from the competition?

ASTER is future-proof, thanks to compatibility with USB-Link and Blu-Link. You can update your firmware and get new options, connect additional accessories, check telemetry.

What is an ETU? It is an Electronic Trigger Unit replacing trigger contacts and the cut-off lever, which takes control of your AEG.

• ASTER gives you great flexibility and is future-proof. Today you can program the most important functions with the trigger, and tomorrow you can borrow a USB-Link or Blu-Link from a friend to configure advanced functions, perform a firmware update, run diagnostics or use the GCS app on a smartwatch
• Hair-trigger up to 60 sensitivity in the first millimeter of trigger movement
• Top-notch automatic pre-cocking
• Foregoing reverse polarity protection in exchange for unparalleled performance
• You can update its firmware via the Internet
• ASTER is a part of the GATE Ecosystem
• Lowest in the market current consumption. Deep sleep mode with only 0.29 mA current consumption prevents battery discharge
• Built-in voltage boost converter allows for trouble-free operation with weaker batteries and increases the switching efficiency
• 3.75 V ready it operates at very low voltage (even 1.2 V during the shot), which is important in high-tuned AEGs, where the voltage under load drops significantly
• Sensor that supports Infinite Torque-up, DSG, SSG, 19-tooth and standard gears
• The possibility of using a mechanical trigger lock
• Compatibility with brushless motors

Why ASTER's programming via trigger is user-friendly?

• You do not need to rush
• You can navigate the menu very quickly and efficiently or slowly and calmly
• The colors of the led lights are only a help you can rely on the vibration of the motor
• In case of any problems, you can use the very popular USB-Link or Blu-Link and use the GCS App

What is the self-learning automatic pre-cocking?

• Thanks to Pre-cocking, you gain trigger reaction similar to real life
• It will automatically set piston position
• It is easy-to-use, just set one of the 3 modes: LOW, MID or HIGH
• It automatically adapts to the battery voltage and rate of fire

Connect your ASTER V2 SX with the GCS App and get total control of your AEG
You choose how to configure ASTER V2 SX simply via trigger or through USB-Link / Blu-Link and our advanced GCS App. You can ask your technician to update ASTER V2 SX firmware using Blu-Link or USB-Link, carry out diagnostics or change settings in a very convenient way. You can also get your own Blu-Link and use the Smartwatch app, giving you real-time data to reinforce your tactical decisions.

Control your airsoft replica from your iOS, Android, macOS or Windows device using an additional dongleUSB-Link or BluLink
Set trigger sensitivity exactly as you like and adjust other ASTER V2 SX settings in a simple way
Use automatic Pre-Cocking to gain a trigger reaction just like in a real replica

Manufacturer: GATE

Specifications:

Wiring Direction: Rear Wired
Supply Voltage Range: 3.75-12.9 V
Current Consumption: 23 mA
Low Power Mode: 288 µA
Dimensions (Length x Width x Height): 43.8 mm x 28.7 mm x 7.7 mm
Weight: 23.35 g
Operating Temperature Range: min. -15°C max. + 50°C
Relative Humidity: ≤ 80%
Brushless Motor Compatibility: Full compatibility with popular brushless motors even with batteries up to 11.1 V
Spring Strength Compatibility: Up to M200 spring
Compatibility: Fits most Version 2 Airsoft AEG gearboxes
Package Includes: ASTER Module, "Programming via Trigger" Card, Aster Patch, Installation Kit, Quickstart Guide

How to update firmware:
-plug Aster battery connector into USBlink or BluLink and connect it to a Cell phone or PC with the GCS app installed
-Go to Status panel and select the most current firmware version
-if not already installed, click "update". this process should take ~2 min to install. all of your previous settings will be saved

About GATE

Since 2009, GATE company has been designing and producing the most innovative AEG Control Systems and MOSFETs. GATE has premises located in Cracow, Poland with products successfully entered global markets and are being sold in more than 30 countries.
